Prerequisites

Before you begin, ensure you have an active phone number on your Wavix account. If you need to purchase one, see our guide on how to buy a phone number.

​
Receive calls with Wavix and OpenAI Realtime API

​
Create OpenAI webhook

  1. Sign in to your OpenAI account at https://platform.openai.com.
  2. Go to your Organization settings.
  3. In the left menu, select Webhooks, then choose Create.

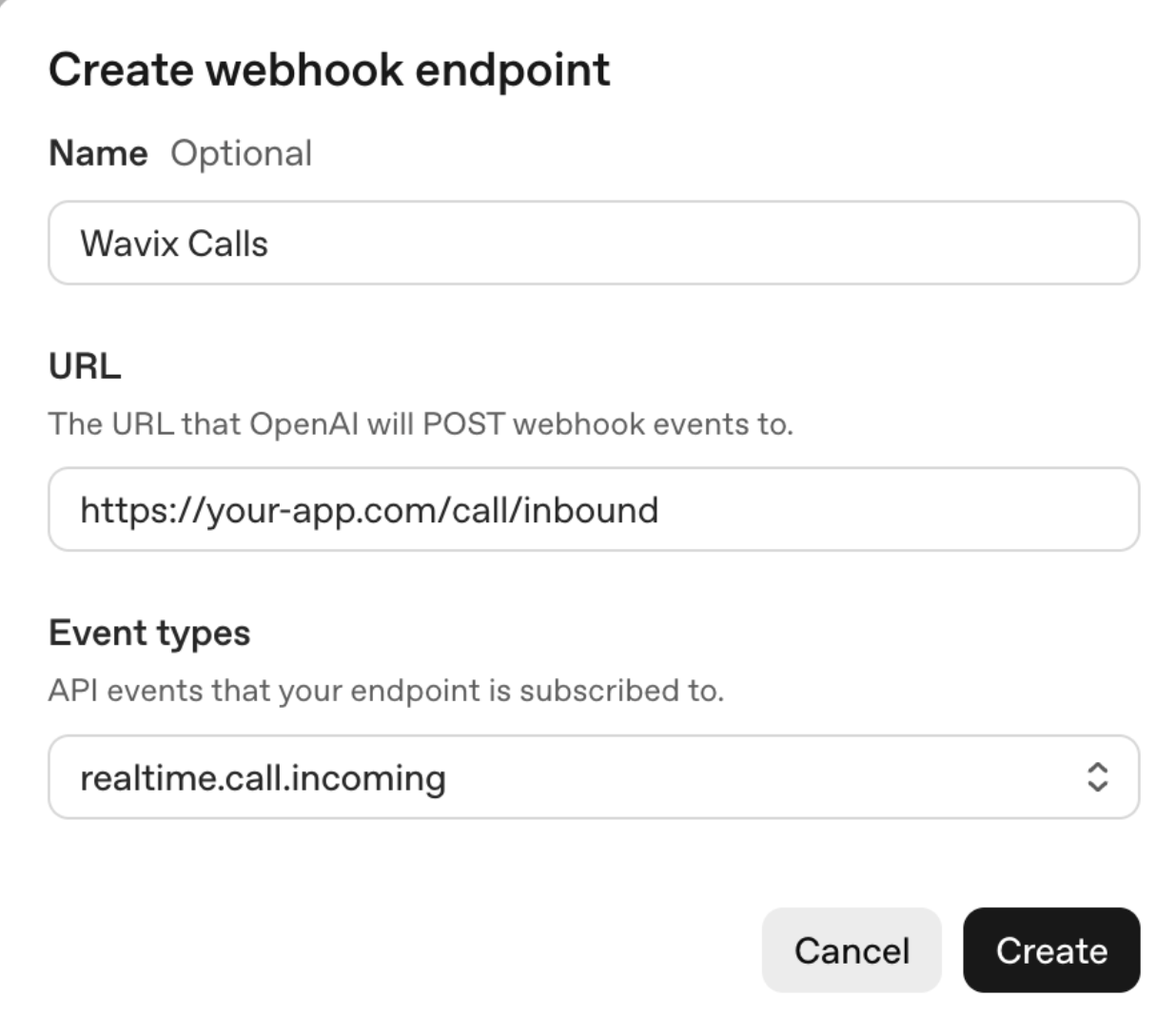

  4. Enter the URL where OpenAI should send events, select realtime.call.incoming from the Event types dropdown, and optionally add a name.
Create an OpenAI webhook screenshot
OpenAI automatically generates a signing secret. Save this secret in a secure location, because you will not be able to view it again. OpenAI uses the signing secret to sign webhook requests. You can use it to verify that each request is from OpenAI and not from a third party.

​
Set up inbound call routing in Wavix

Wavix can route inbound calls to a SIP trunk on the platform, SIP URI, or forward them to a phone number. OpenAI requires calls to be routed to a SIP URI. Before setting up a Wavix number:

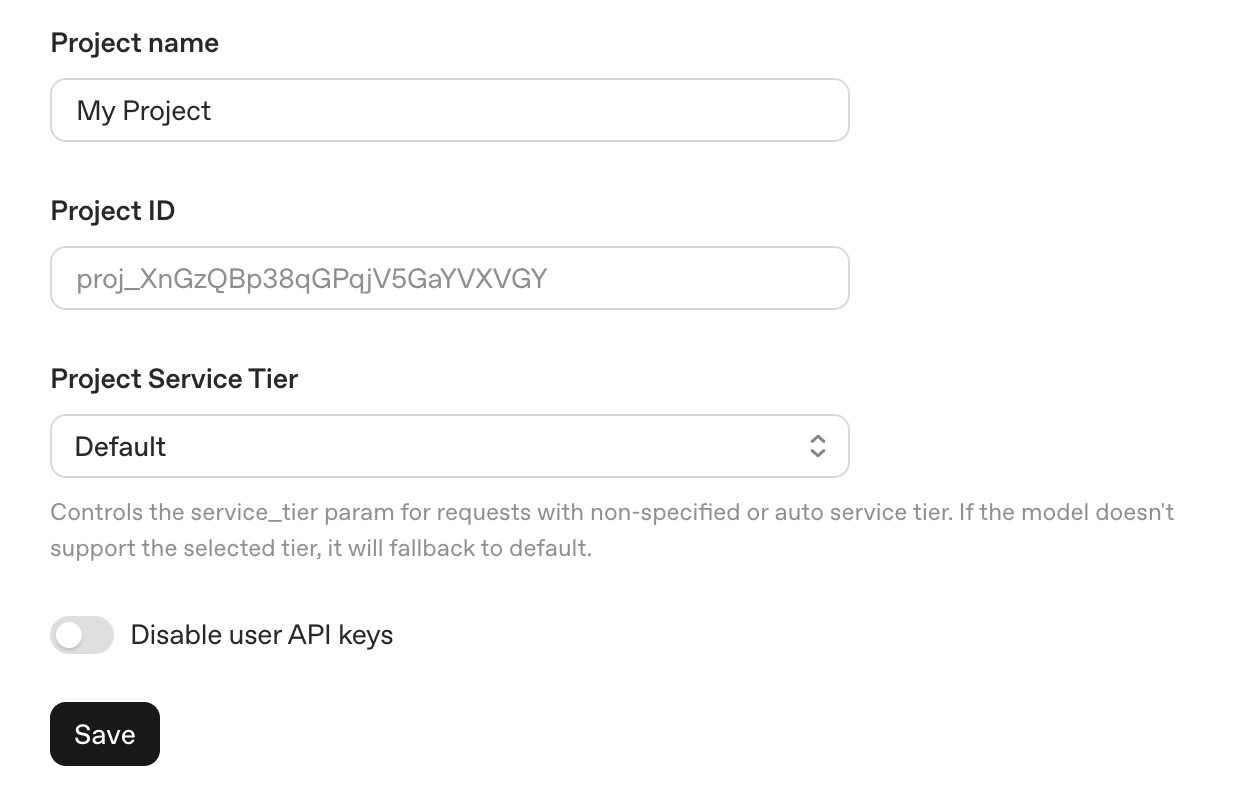

  1. In your OpenAI account, go to General → Project.
  2. Copy the value from Project ID. You’ll need it to configure inbound call routing in Wavix.
OpenAI Project ID To route calls from your Wavix number to the OpenAI platform:
  1. In Wavix, open Numbers & trunks → My numbers.
  2. Select your number by clicking the ⋯ menu → Edit number.
  3. Set the inbound call destination type to SIP URI, and enter the destination in the format of:
[OpenAI_PROJECT_ID]@sip.api.openai.com;transport=tls
In the example above, it would be:
proj_XnGzQBp38qGPqjV5GaYVXVGY@sip.api.openai.com;transport=tls
  1. Save your changes.
Now, all calls to your Wavix number are routed to your OpenAI project.

​
Managing calls using OpenAI Realtime API

You can answer, decline, monitor, refer, and hang up calls using the OpenAI API.
To learn more, see the OpenAI Realtime SIP API documentation.

​
Answer a call

When OpenAI receives SIP traffic linked to your project, it triggers your webhook. The event type is realtime.call.incoming, as shown in the example below:
POST https://your-app.com/call/inbound
user-agent: OpenAI/1.0 (+https://platform.openai.com/docs/webhooks)
content-type: application/json
webhook-id: wh_68df8a55937881909c0db29329f4df96 # unique id for idempotency
webhook-timestamp: 1759480406 # timestamp of delivery attempt
webhook-signature: v1,K5oZfzN95Z9UVu1EsfQmfVNQhnkZ2pj9o9NDN/H/pI4= # signature to verify authenticity from OpenAI
{
  "object": "event",
  "id": "evt_68df8a5585808190968c8d1243ab3f9f",
  "type": "realtime.call.incoming",
  "created_at": 1759480405,
  "data": {
    "call_id": "rtc_5bfabb18c4574e30a75f4bfaad13f878",
    "sip_headers": [
      {"name": "From", "value": "\"+14067704205\" <sip:+14067704205@209.58.144.243>;tag=as6442942c"},
      { "name": "To", "value": "sip:proj_XnGzQBp38qGPqjV5GaYVXVGY@sip.api.openai.com;transport=tls" },
      { "name": "Call-ID", "value": "03782086-4ce9-44bf-8b0d-4e303d2cc590"},
      {"name": "x-number", "value": "17134810111"}
    ]
  }
}
The call_id parameter is a unique identifier of the call in the OpenAI platform. Use it when answering the call. To answer the call, use the OpenAI Accept call endpoint. When answering the call, you should provide the required configuration, including instructions, voice, and other settings, for the Realtime API session.
curl -X POST "https://api.openai.com/v1/realtime/calls/$call_id/accept" \
  -H "Authorization: Bearer $OPENAI_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
        "type": "realtime",
        "model": "gpt-realtime",
        "instructions": "You are Alex, a friendly support agent for Wavix."
      }'
  • $call_id: unique identifier of the call in OpenAI.
  • $OPENAI_API_KEY: your OpenAI API Key.
The SIP INVITE request from Wavix includes the x-number header, which contains the dialed number from your Wavix account. You can use this value to provide different instructions based on the number that was called.

​
Decline the call

To decline the call, use the OpenAI Reject call endpoint. You can optionally include a SIP response code to return to the caller.

​
Transfer the call

Wavix supports using the SIP REFER command. To transfer a call, you need two Wavix numbers, one for an active call and one to receive the transferred call. Make sure inbound call routing is set up on the second number. To transfer an active call, use the OpenAI Refer call endpoint. In the request, the target_uri parameter should contain the Wavix number.

​
Hang up the call

To hang up the call, use the OpenAI Hang up call endpoint. In the request, the call_id parameter should contain the OpenAI unique call identifier.

​
Monitor call events

After you answer a call, open a WebSocket connection to the session to stream events and send realtime commands.
GET wss://api.openai.com/v1/realtime?call_id={call_id}

​
Troubleshooting

  • If inbound calls aren’t reaching your OpenAI project, make sure Inbound call routing is set up correctly in Wavix.
  • Make sure all phone numbers are in international E.164 format, e.g. 19085594899 (US) or 4408001218915 (UK). Do not dial local formats like 9085594899. Strip prefixes like 0, 00, or 011 if needed.
